| Technologie INTEL Skylake / Format mini-ITX |
| Processeurs INTEL 6th & 7th Gen Core U Mobile |
| Mémoire 2 slots DDR4 SO-DIMM 32GB max |
| 2 SATA 3 600 Mb/s • Support RAID 0,1 |
| 2 Gbe ethernet INTEL |
| 1 PCI • 2 miniPCIe |
| 6 RS232 • 4 USB3 • 4 USB2 |
| DVI-I • Display port • VGA ( pinout) • LVDS |
| Alimentation 24-pin ATX ou 1 P4 4-pin 9V~36V |

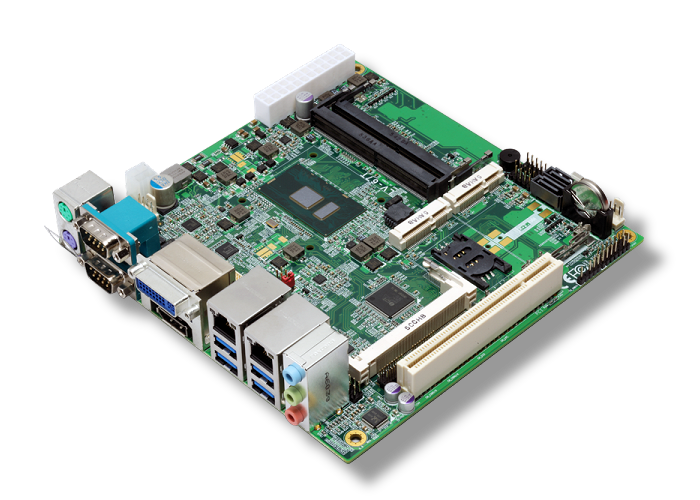

La carte mère COMMELL LV-67T au format mini-ITX est basée sur le chispet Skylake U Mobile ( 6thGen & 7Th Gen INTEL Core ). Elle permet des performances élevées avec un consommation et un TDP réduit à 15 Watts. |
| Chipset | INTEL Sunrise Point-LP |
| Processeur | Celeron INTEL 6th & 7th Gen Core U |
| Video | INTEL HD620 |
| Mémoire | 2 slots SO-DIMM DDR4 2133 32 GB max |
| SATA | 2 SATA 3 600 MB/s • RAID 0,1 |
| Ethernet | 2 Gigabit Ethernet INTEL I219-LM 1 I210-AT |
| Audio | AC97 ALC262 |
| USB | 4 USB 3 • 4 USB2 |
| Serie | 6 RS232 (1 RS422 /485) |
| Affichage | 1 display port • 1 DVI-I • VGA ( pinout) • LVDS |
| Interface | 1 PCI • 2 miniPCIe |
| Interne | 4 RS232 • 2 SATA 3 • 4 USB2 • 1 LVDS • 1 LPC • 1 GPIO • 1 Audio • 1 PS/2 • 1 VGA |
| Externe | 1 Display Port • 1 Audio • 1 DVI-I • 1 HDMI • 4 USB 3 • 2 LAN • 1 RS232/422/485 • 1 RS232 |
| Temp. fonct. | 0°C à 60°C |
| Temp. stockage | -20°C à 80°C |
| Humidité | 20%° à 80% |
| Certification | FCC, CE |
| Dimensions | 170 x 170 mm |
| LV-67TK3 | Core I3-7100U ( 2 Coeurs / 4 Threads / TDP 15 Watts / TDP down 7.5 Watts |
| LV-67TK5 | Core I5-7300U ( 2 Coeurs / 4 Threads / TDP 15 Watts / TDP down 7.5 Watts |
| LV-67TK7 | Core I7-7600U ( 2 Coeurs / 4 Threads / TDP 15 Watts / TDP down 7.5 Watts |
| LV-67TK7 | Core I3-6100U ( 2 Coeurs / 4 Threads / TDP 15 Watts / TDP down 7.5 Watts |
| LV-67TK7 | Core I5-6300U ( 2 Coeurs / 4 Threads / TDP 15 Watts / TDP down 7.5 Watts |
| LV-67TK7 | Core I7-6600U ( 2 Coeurs / 4 Threads / TDP 15 Watts / TDP down 7.5 Watts |
